FH30L-90
Electric latching Relay
Feature Description
● 90A contact switching capability
● Withstand capacity 2000A 0.3ms 300 times can be off
● Contact gap is 1.5mm
●Contact on and off can be controlled by manual control switch
● UL insulation system:Class F

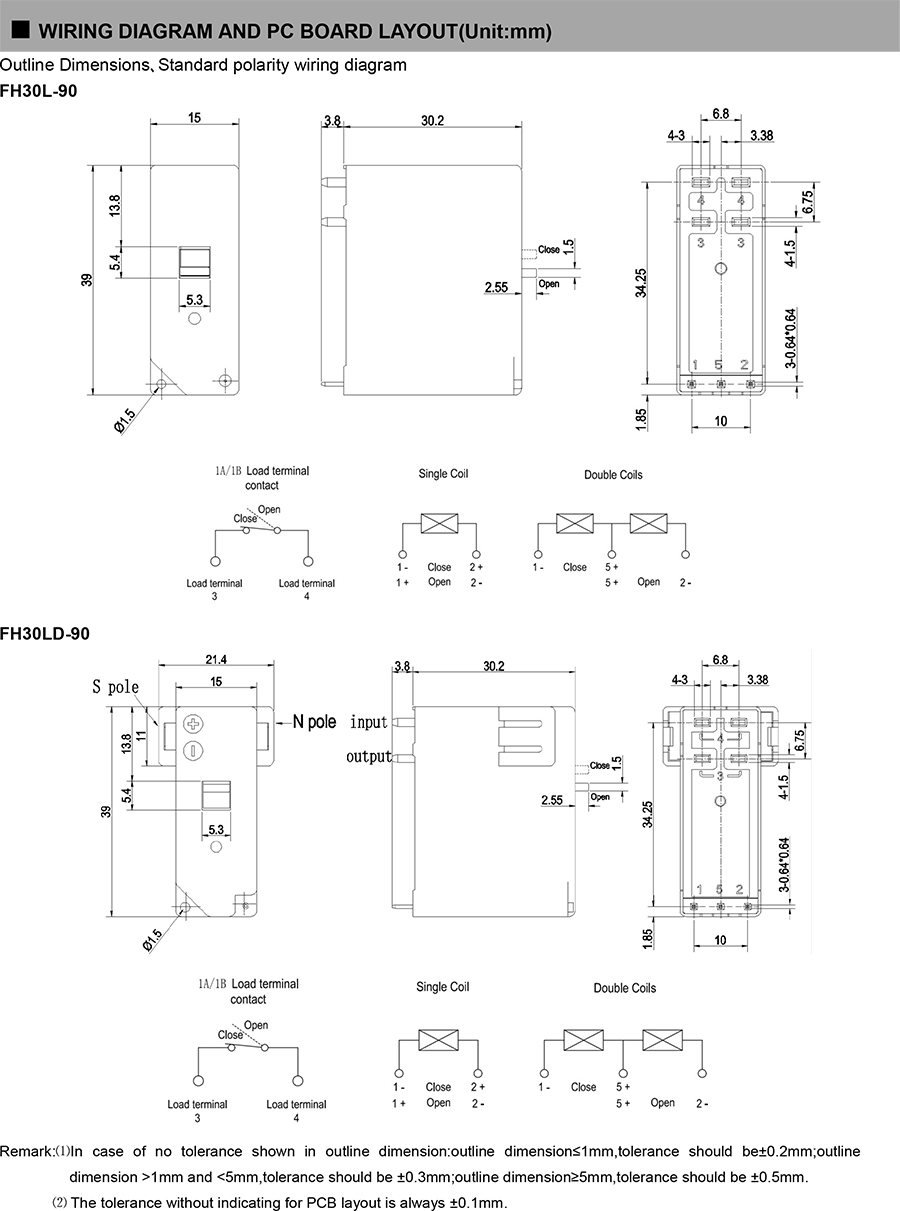

● Outline Dimensions:FH30L-90：(39.0×15.0×30.2)mm
FH30LD-90：(39.0×21.4×30.2)mm
● Main application:charging pile,Smart home,Lighting control
Product Description
Download PDF
