Feature Description

● 10A switching capability
● Contact arrangement:1A?1C

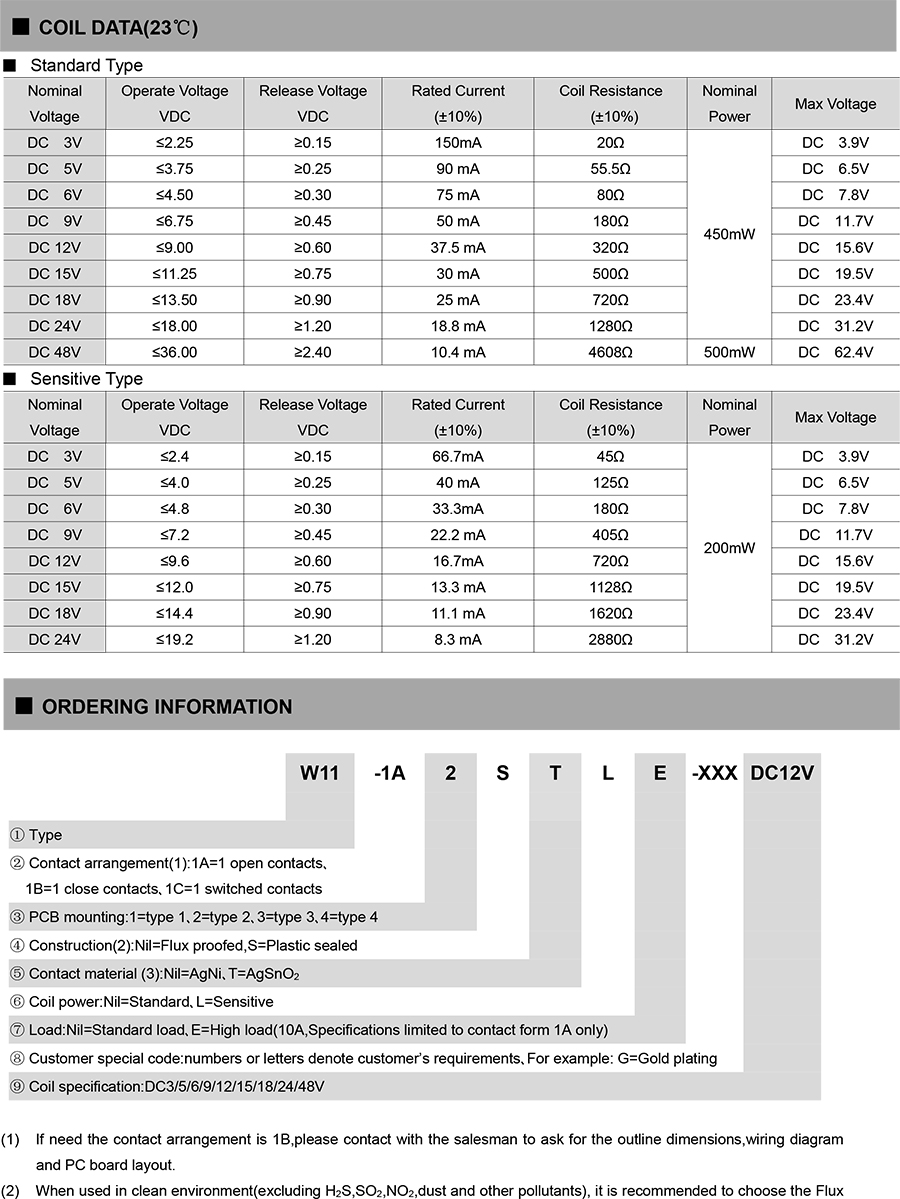

● Provide high sensitivity type of products, coil power consumption is 200mW
● Breakdown voltage (between coil and contacts):5KV
● Creepage distance and air distance are greater than10mm
● We can provide the product with ambient temperature is 105℃
● UL insulation system:Class F
● Environmental friendly product(RoHS compliant)

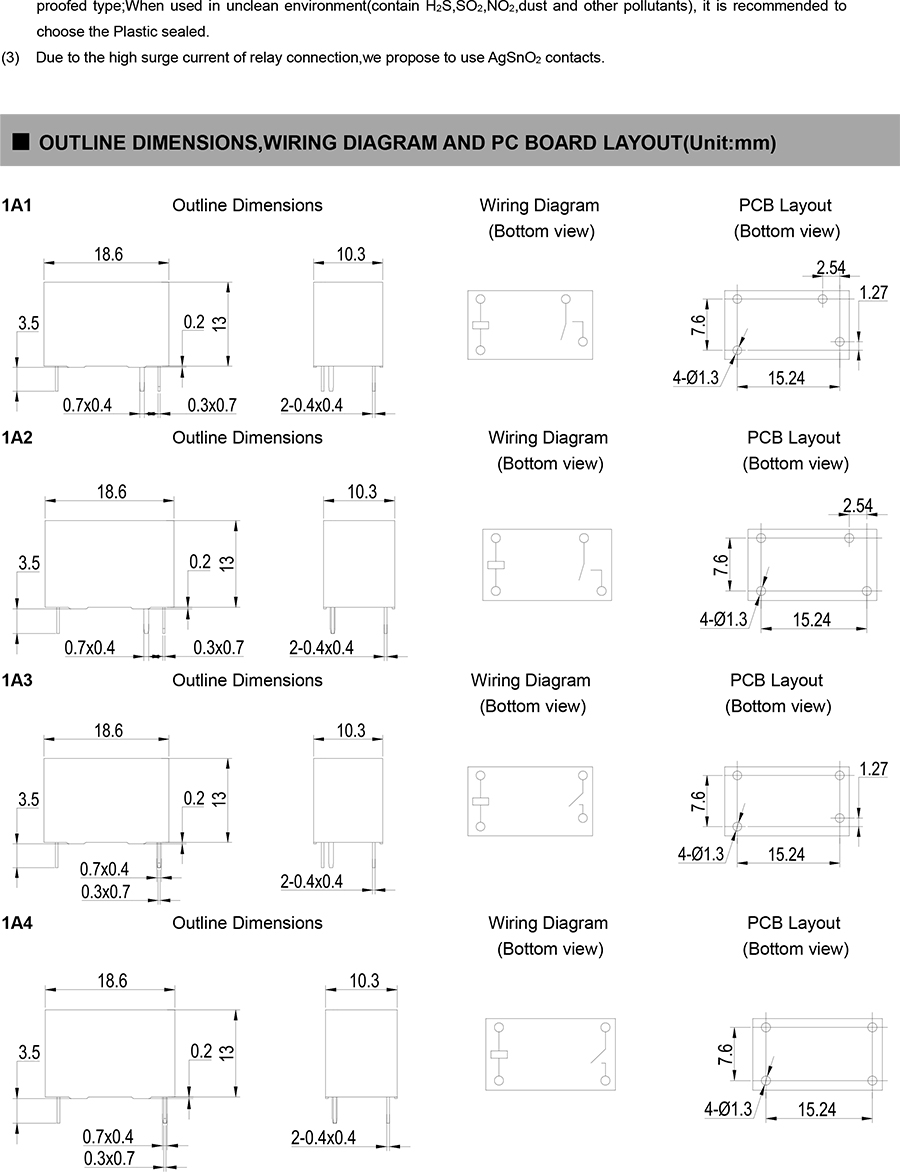

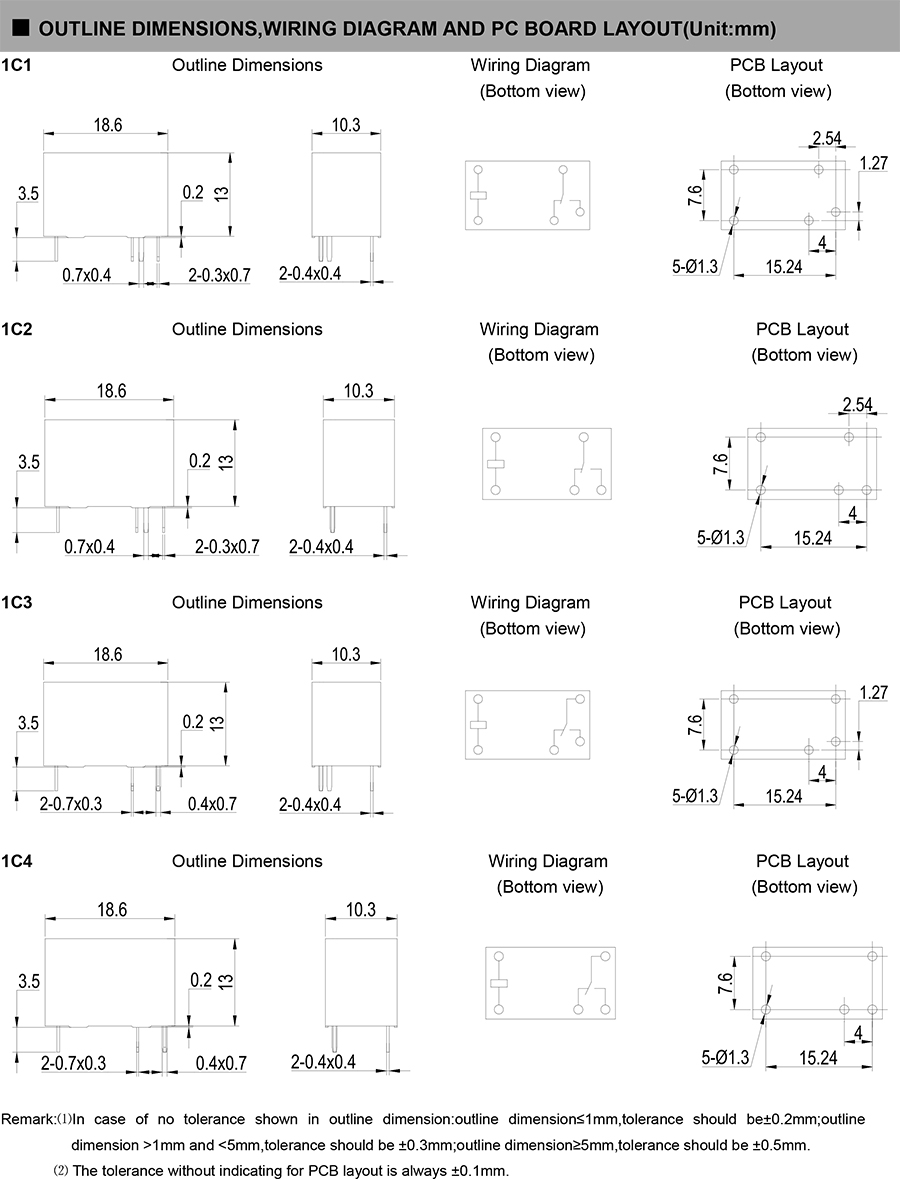

● Outline Dimensions:(18.6×10.3×13.0)mm
● Main application:Industrial control, Smart home, 5G communication power
